Product Citations

Product Citations

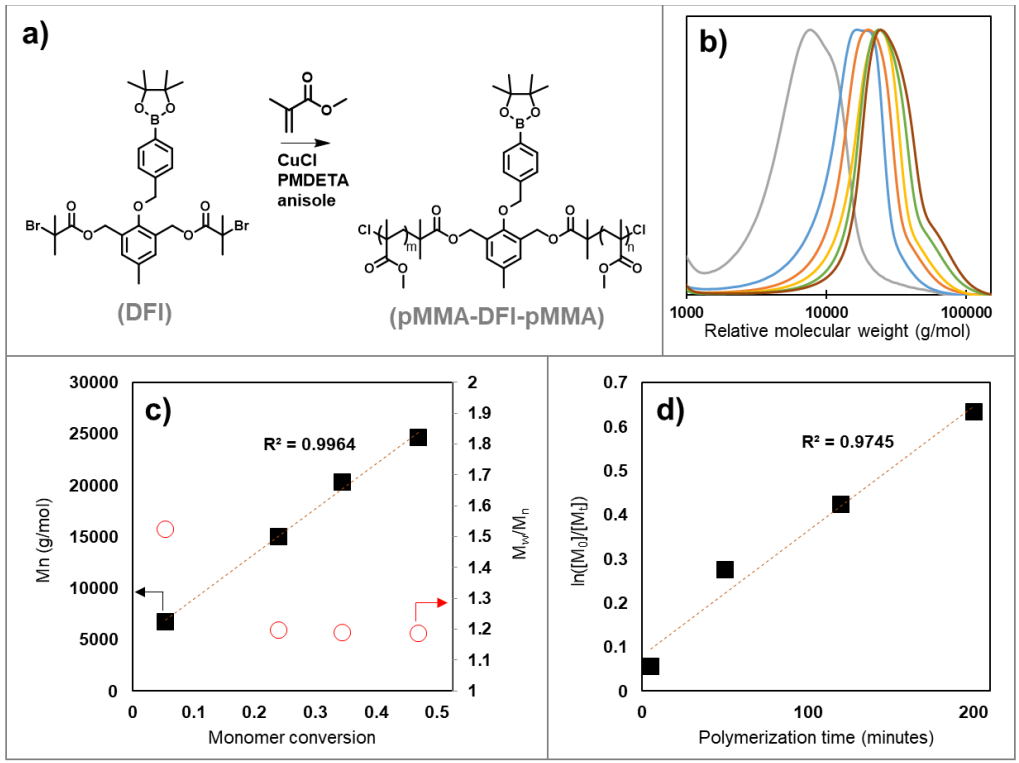

Lawrence Hill ; Hunter Sims ; Christopher Collins ; Jeffery Palmer ; Fiona Wasson ;

Abstract: Mid-chain degradable polymers can be prepared by atom transfer radical polymerization from difunctional initiators that include triggers for the desired stimuli. While many difunctional initiators can respond to reducing conditions, procedures to prepare difunctional initiators that respond to oxidizing conditions are significantly less available in the literature. Here, a difunctional initiator incorporating an oxidizable boronic ester trigger was synthesized over four steps using simple and scalable procedures. Methyl methacrylate was polymerized by atom transfer radical polymerization using this initiator, and the polymerization kinetics were consistent with a controlled polymerization. The polymer synthesized using the difunctional initiator was found to decrease in molecular weight by 58% in the presence of hydrogen peroxide, while a control experiment using poly(methyl methacrylate) without a degradable linkage showed a much smaller decrease in molecular weight of only 9%. These observed molecular weight decreases were consistent with cleavage of the difunctional initiator via a quinone methide shift and hydrolysis of the methyl ester pendent groups in both polymers, and both polymers increased in polydispersity after oxidative degradation.

Keywords: boronic ester ; degradable polymer ; difunctional initiator ; ATRP

Purchased from AmBeed:

Alternative Products

Product Details of [ 138500-85-3 ]

CAS No. :138500-85-3
Formula : C13H18BBrO2
M.W : 297.00
SMILES Code : CC1(C)C(C)(C)OB(C2=CC=C(CBr)C=C2)O1
MDL No. :MFCD02179493
InChI Key :CBUOGMOTDGNEAW-UHFFFAOYSA-N
Pubchem ID :3734506

Safety of [ 138500-85-3 ]

GHS Pictogram:
Signal Word:Warning
Hazard Statements:H302-H315-H319-H335
Precautionary Statements:P261-P301+P312-P302+P352-P304+P340-P305+P351+P338

Computational Chemistry of [ 138500-85-3 ] Show Less

Physicochemical Properties

Num. heavy atoms 17
Num. arom. heavy atoms 6
Fraction Csp3 0.54
Num. rotatable bonds 2
Num. H-bond acceptors 2.0
Num. H-bond donors 0.0
Molar Refractivity 75.75
TPSA ?

Topological Polar Surface Area: Calculated from
Ertl P. et al. 2000 J. Med. Chem.

18.46 Ų

Lipophilicity

Log Po/w (iLOGP)?

iLOGP: in-house physics-based method implemented from
Daina A et al. 2014 J. Chem. Inf. Model.

0.0
Log Po/w (XLOGP3)?

XLOGP3: Atomistic and knowledge-based method calculated by
XLOGP program, version 3.2.2, courtesy of CCBG, Shanghai Institute of Organic Chemistry

3.47
Log Po/w (WLOGP)?

WLOGP: Atomistic method implemented from
Wildman SA and Crippen GM. 1999 J. Chem. Inf. Model.

2.73
Log Po/w (MLOGP)?

MLOGP: Topological method implemented from
Moriguchi I. et al. 1992 Chem. Pharm. Bull.
Moriguchi I. et al. 1994 Chem. Pharm. Bull.
Lipinski PA. et al. 2001 Adv. Drug. Deliv. Rev.

2.41
Log Po/w (SILICOS-IT)?

SILICOS-IT: Hybrid fragmental/topological method calculated by
FILTER-IT program, version 1.0.2, courtesy of SILICOS-IT, http://www.silicos-it.com

2.87
Consensus Log Po/w?

Consensus Log Po/w: Average of all five predictions

2.3

Water Solubility

Log S (ESOL):?

ESOL: Topological method implemented from
Delaney JS. 2004 J. Chem. Inf. Model.

-4.0
Solubility 0.0299 mg/ml ; 0.000101 mol/l
Class?

Solubility class: Log S scale
Insoluble < -10 < Poorly < -6 < Moderately < -4 < Soluble < -2 Very < 0 < Highly

Soluble
Log S (Ali)?

Ali: Topological method implemented from
Ali J. et al. 2012 J. Chem. Inf. Model.

-3.54
Solubility 0.0857 mg/ml ; 0.000289 mol/l
Class?

Solubility class: Log S scale
Insoluble < -10 < Poorly < -6 < Moderately < -4 < Soluble < -2 Very < 0 < Highly

Soluble
Log S (SILICOS-IT)?

SILICOS-IT: Fragmental method calculated by
FILTER-IT program, version 1.0.2, courtesy of SILICOS-IT, http://www.silicos-it.com

-5.24
Solubility 0.00169 mg/ml ; 0.0000057 mol/l
Class?

Solubility class: Log S scale
Insoluble < -10 < Poorly < -6 < Moderately < -4 < Soluble < -2 Very < 0 < Highly

Moderately soluble

Pharmacokinetics

GI absorption?

Gatrointestinal absorption: according to the white of the BOILED-Egg

High
BBB permeant?

BBB permeation: according to the yolk of the BOILED-Egg

Yes
P-gp substrate?

P-glycoprotein substrate: SVM model built on 1033 molecules (training set)
and tested on 415 molecules (test set)
10-fold CV: ACC=0.72 / AUC=0.77
External: ACC=0.88 / AUC=0.94

Yes
CYP1A2 inhibitor?

Cytochrome P450 1A2 inhibitor: SVM model built on 9145 molecules (training set)
and tested on 3000 molecules (test set)
10-fold CV: ACC=0.83 / AUC=0.90
External: ACC=0.84 / AUC=0.91

No
CYP2C19 inhibitor?

Cytochrome P450 2C19 inhibitor: SVM model built on 9272 molecules (training set)
and tested on 3000 molecules (test set)
10-fold CV: ACC=0.80 / AUC=0.86
External: ACC=0.80 / AUC=0.87

No
CYP2C9 inhibitor?

Cytochrome P450 2C9 inhibitor: SVM model built on 5940 molecules (training set)
and tested on 2075 molecules (test set)
10-fold CV: ACC=0.78 / AUC=0.85
External: ACC=0.71 / AUC=0.81

No
CYP2D6 inhibitor?

Cytochrome P450 2D6 inhibitor: SVM model built on 3664 molecules (training set)
and tested on 1068 molecules (test set)
10-fold CV: ACC=0.79 / AUC=0.85
External: ACC=0.81 / AUC=0.87

Yes
CYP3A4 inhibitor?

Cytochrome P450 3A4 inhibitor: SVM model built on 7518 molecules (training set)
and tested on 2579 molecules (test set)
10-fold CV: ACC=0.77 / AUC=0.85
External: ACC=0.78 / AUC=0.86

Yes
Log Kp (skin permeation)?

Skin permeation: QSPR model implemented from
Potts RO and Guy RH. 1992 Pharm. Res.

-5.65 cm/s

Druglikeness

Lipinski?

Lipinski (Pfizer) filter: implemented from
Lipinski CA. et al. 2001 Adv. Drug Deliv. Rev.
MW ≤ 500
MLOGP ≤ 4.15
N or O ≤ 10
NH or OH ≤ 5

0.0
Ghose?

Ghose filter: implemented from
Ghose AK. et al. 1999 J. Comb. Chem.
160 ≤ MW ≤ 480
-0.4 ≤ WLOGP ≤ 5.6
40 ≤ MR ≤ 130
20 ≤ atoms ≤ 70

None
Veber?

Veber (GSK) filter: implemented from
Veber DF. et al. 2002 J. Med. Chem.
Rotatable bonds ≤ 10
TPSA ≤ 140

0.0
Egan?

Egan (Pharmacia) filter: implemented from
Egan WJ. et al. 2000 J. Med. Chem.
WLOGP ≤ 5.88
TPSA ≤ 131.6

0.0
Muegge?

Muegge (Bayer) filter: implemented from
Muegge I. et al. 2001 J. Med. Chem.
200 ≤ MW ≤ 600
-2 ≤ XLOGP ≤ 5
TPSA ≤ 150
Num. rings ≤ 7
Num. carbon > 4
Num. heteroatoms > 1
Num. rotatable bonds ≤ 15
H-bond acc. ≤ 10
H-bond don. ≤ 5

0.0
Bioavailability Score?

Abbott Bioavailability Score: Probability of F > 10% in rat
implemented from
Martin YC. 2005 J. Med. Chem.

0.55

Medicinal Chemistry

PAINS?

Pan Assay Interference Structures: implemented from
Baell JB. & Holloway GA. 2010 J. Med. Chem.

0.0 alert
Brenk?

Structural Alert: implemented from
Brenk R. et al. 2008 ChemMedChem

2.0 alert: heavy_metal
Leadlikeness?

Leadlikeness: implemented from
Teague SJ. 1999 Angew. Chem. Int. Ed.
250 ≤ MW ≤ 350
XLOGP ≤ 3.5
Num. rotatable bonds ≤ 7

No; 1 violation:MW<0.0
Synthetic accessibility?

Synthetic accessibility score: from 1 (very easy) to 10 (very difficult)
based on 1024 fragmental contributions (FP2) modulated by size and complexity penaties,
trained on 12'782'590 molecules and tested on 40 external molecules (r2 = 0.94)

3.03

Application In Synthesis of [ 138500-85-3 ]

* All experimental methods are cited from the reference, please refer to the original source for details. We do not guarantee the accuracy of the content in the reference.

  • Downstream synthetic route of [ 138500-85-3 ]

[ 138500-85-3 ] Synthesis Path-Downstream   1~11

  • 1
  • [ 872-31-1 ]
  • [ 119838-38-9 ]
  • [ 138500-85-3 ]
  • (2S,5S)-2-tert-Butyl-3-methyl-4-oxo-5-(4-thiophen-3-yl-benzyl)-imidazolidine-1-carboxylic acid tert-butyl ester [ No CAS ]
  • 2
  • [ 5332-24-1 ]
  • [ 119838-38-9 ]
  • [ 138500-85-3 ]
  • (2S,5S)-2-tert-Butyl-3-methyl-4-oxo-5-(4-quinolin-3-yl-benzyl)-imidazolidine-1-carboxylic acid tert-butyl ester [ No CAS ]
  • 3
  • [ 591-50-4 ]
  • [ 119838-38-9 ]
  • [ 138500-85-3 ]
  • (2S,5S)-5-Biphenyl-4-ylmethyl-2-tert-butyl-3-methyl-4-oxo-imidazolidine-1-carboxylic acid tert-butyl ester [ No CAS ]
  • 4
  • [ 17497-53-9 ]
  • [ 119838-38-9 ]
  • [ 138500-85-3 ]
  • (2S,5S)-2-tert-Butyl-5-(4-cyclohex-1-enyl-benzyl)-3-methyl-4-oxo-imidazolidine-1-carboxylic acid tert-butyl ester [ No CAS ]
  • 5
  • [ 352-34-1 ]
  • [ 119838-38-9 ]
  • [ 138500-85-3 ]
  • (2S,5S)-2-tert-Butyl-5-(4'-fluoro-biphenyl-4-ylmethyl)-3-methyl-4-oxo-imidazolidine-1-carboxylic acid tert-butyl ester [ No CAS ]
  • 6
  • [ 588-72-7 ]
  • [ 119838-38-9 ]
  • [ 138500-85-3 ]
  • (2S,5S)-2-tert-Butyl-3-methyl-4-oxo-5-[4-((E)-styryl)-benzyl]-imidazolidine-1-carboxylic acid tert-butyl ester [ No CAS ]
  • 7
  • [ 302348-51-2 ]
  • [ 138500-85-3 ]
YieldReaction ConditionsOperation in experiment
94% With carbon tetrabromide; triphenylphosphine; In tetrahydrofuran; at 0 - 20℃; for 18h;Inert atmosphere; 2-(4-(Bromomethyl)phenyl)-4,4,5,5-tetramethyl-l,3,2-dioxaborolane (3) The compound 2(1 eq, 5.72 mmol) was dissolved in THF (25 mL) followed by the addition of triphenylphosphine (2 eq, 11.4 mmol). The mixture was cooled to 0C with an ice bath then tetrabromomethane (2 eq, 11.4 mmol) was carefully added portion wise. The reaction was stirred at rt for 18h. The solution was poured into water (30 mL) and extracted 3 times (3 x 25 mL) with EtOAc. The combined organic extracts were dried, filtered and evaporated under vacuum. The compound was purified using column chromatography (silica gel, 99/1Hex/EtOAc) to afford the desired compound (Rf = 0.2) as a colourless solid (1.6 g, 94%). 1H-NMR (CDCI3, 600 MHz) delta 7.78 (d, J = 8.0 Hz, 2H), 7.38 (d, J = 8.0 Hz, 2H), 4.49 (s, 2H), 1.34 (s, 12H); 13C-NMR (CDC13, 150 MHz) delta 140.8, 135.3, 128.4, 84.0, 33.4, 25.0.
92% With carbon tetrabromide; triphenylphosphine; In tetrahydrofuran; at 20℃; for 4h;Cooling with ice; 4-hydroxymethylphenylboronic acid, pinacol ester (1.08 g, 4.61 mmol) was dissolved in THF (20 ml) together with triphenylphosphine (2.42 g, 9.23mmol). The reaction mixture was cooled in an ice-water bath, and carbon tetrabromide (3.06 g, 9.23 mmol) was added portion wise. After stirring for 4 hours at room temperature, the reaction mixture was poured into water and extracted with ethyl acetate. The organic layer was combined and dried by sodium sulfate. After filtration, the solvent was evaporated, and the residue was purified by flash chromatography to give the product as a white solid (1.72 g, 92%). 1H NMR (300 MHz, CD2C12, delta): 7.62 (d, J = 6.0 Hz, 2H), 7.32 (d, J = 6.0 Hz, 2H), 4.58 (d, 2H), 1.34 (s, 9H); MS (ESI) m/z 297.0.
  • 8
  • [ 110-89-4 ]
  • [ 138500-85-3 ]
  • [ 859833-22-0 ]
YieldReaction ConditionsOperation in experiment
With potassium carbonate; In N,N-dimethyl-formamide; at 80℃; for 0.75h; 2-(4-Bromomethyl-phenyl)-4,4,5,5-tetramethyl-[1 ,3,2]dioxaborolane (250 mg; 0.84 mmol), piperidine (94 mg; 1.1 mmol) and K2CO3 (140 mg; 1.01 mmol) in DMF (4 ml) are heated to <n="59"/>800C for 45 minutes. The reaction mixture is cooled to room temperature, diluted with TBME, filtered and evaporated to dryness to deliver the title compound as orange crystals. N 1 H-NMR (400MHz; DMSO-d6): 7.63 (d, 2H); 7.33 (d, 2H); 3.44 s, 2H); 2.31 (bs, 4H); 1.50 (m, 4H); 1.39 (m, 2H); 1.30 (s, 12H). MS (m/z) ES+: 302 (MH+).
  • 9
  • [ 68631-52-7 ]
  • [ 138500-85-3 ]
  • [ 1015086-32-4 ]
  • 10
  • [ 939-69-5 ]
  • [ 138500-85-3 ]
  • [ 1344979-77-6 ]
YieldReaction ConditionsOperation in experiment
82% With cesium chloride; In N,N-dimethyl-formamide; at 60℃; for 0.75 - 0.833333h; 6-(4-(4,4,5,5-Tetramethyl-1,3,2-dioxaborolan-2-yl)benzyloxy)benzo[d]thiazole-2-carbonitrile (5) Compounds 3 (300 mg, 1.7 mmol) and 4 (505.7 mg, 1.7 mmol) were dissolved in 30 mL dry DMF prior to the addition of cesium chloride (610.25 mg, 1.87 mmol). The mixture was stirred at 60° C. for 45-50 min before it was allowed to cool to room temperature. 100 mL ethyl acetate was added to the reaction, and the organic phase was washed three times with deionized water. The aqueous layers were combined and washed three times with ethyl acetate. All of the organic layers were combined, washed twice with brine, dried over sodium sulfate, and concentrated. The crude material was purified on a silica column (90:10 hexanes:ethyl acetate, dry loaded) to give 547.4 mg (82percent) of the pure product. 1H NMR (400 MHz, CDCl3): delta 1.36 (1H, s), 5.21 (2H, s), 7.32 (1H, d, J=8.8 Hz), 7.40 (1H, s), 7.45 (2H, d, J=7.6 Hz), 7.86 (2H, d, J=7.2 Hz), 8.09 (1H, d, J=9.2). LRESI-MS: calculated for [C21H22BN2O3S]+393.1. found 393.1.
  • 11
  • [ 150058-27-8 ]
  • [ 138500-85-3 ]
  • methyl 2-ethoxy-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzyl)-1H-benzo[d]imidazole-7-carboxylate [ No CAS ]
YieldReaction ConditionsOperation in experiment
72% To a solution of methyl 2-ethoxy-lH-benzo[d]imidazole-7-carboxylate (1.00 g, 4.54 mmol) in 2-propanol (15 ml) was added potassium carbonate (1.26 g, 9.08 mmol) and this was stirred at 30°C for 5 minutes. To this mixture were added 2-(4- (bromomethyl)phenyl)-4,4,5,5-tetramethyl-l,3,2-dioxaborolane (1.44 g, 4.77 mmol) and tetrabutylammonium iodide (0.084 g, 0.227 mmol) and the temperature was increased to 45°C. After stirring for 2.5 hours, another portion of 2-(4-(bromomethyl)phenyl)-4,4,5,5- tetramethyl-l,3,2-dioxaborolane (0.250 g, 0.842 mmol) was added and the reaction was stirred for an additional 18 hours. The reaction was cooled to RT and diluted with EtOAc (200 ml), and 0 (50 ml) was added. The layers were separated and the organic layer was washed with brine (50 ml), then dried over anhydrous sodium sulfate, filtered, and evaporated under reduced pressure. The residue was dissolved in DCM (10 ml) and injected on a 40-gram ISCO-type silica gel column pre-equilibrated with hexane and the title compound was purified by elution using a 0 to 60percent EtOAc/hexane gradient to provide the title compound as a yellow solid. (1.44 g, 3.31 mmol, 72percent yield). LC-MS (Method H): 1.42 min, [M + H]+= 437.2; H NMR (400 MHz, CDC13) delta ppm 7.73 (dd, 7=8.0, 1.0 Hz, 1 H) 7.67 (m, 7=8.2 Hz, 2 H) 7.53 (dd, 7=7.8, 1.2 Hz, 1 H) 7.16 (t, 7=7.8 Hz, 1 H) 6.96 (m, 7=8.2 Hz, 2 H) 5.63 (s, 2 H) 4.65 (q, 7=7.0 Hz, 2 H) 3.72 (s, 3 H) 1.46 (t, 7=7.0 Hz, 3 H) 1.31 (s, 12 H).
